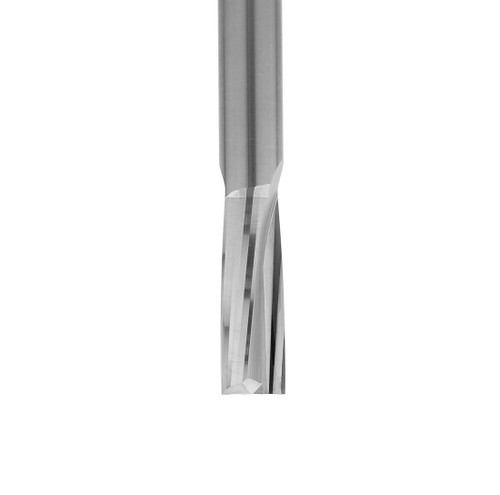

Lima Series 1/8" x 1/2" x 2 Flt "O" Upshear

Application: The LU125.500.22 compact design makes for a small diameter tool with high rigidity and is an excellent choice for part cut out, slot cutting and profile routing a variety of soft to hard plastic and composite materials.  The multi-facet relief, polished flute face and special upshear tool geometry works to minimize part movement while evacuating material from the work piece.  These features enables Lima Series tools to produce a smooth edge finish at high feed speeds with no material melting.

• Lima Series tools feature application specific designs, are manufactured in the USA using premium solid carbide material, utilize a precision grinding process and exclusive edge finish making for an exceptional cutting tool.
• The low helix upshear design provides for excellent chip evacuation which improves edge finishes while reducing heat and part movement.
• Optional tool coatings are available to further optimize tool performance.
• Additional features include: Plunge end design with wiper flats for smooth bottom finish.  High tolerance shank for use with high accuracy tool holding systems.
